Protocol#
The TGBOX Protocol is a number of rules and algorithms that define how all of things (like Encryption, packing Metadata, File sharing & etc) work. As TGBOX is built around the Telegram messenger, we can call a TGBOX as an additional layer which adds some new features.
Algorithms used in Encryption#
For encryption, we use the AES CBC with 256 bit key. First 16 bytes of any encrypted by library data is IV;
For making the
BaseKey(a key that is used to derive all sub-keys) we use by default Scrypt PBKDF;As hash function (for various purposes) we always use the SHA256;
For File and Box Sharing we propose and use by default ECDH on SECP256k1 curve;
Started from version 1.5 we use HMAC-SHA256 to verify that any bit of plaintext was not tweaked.
Reasoning behind using this algorithms
Why AES-CBC-256? CBC is very fast, secure and available on any platform. One may say that the CBC mode of Encryption is pretty old and considered dangerous to use because of Padding-oracle attack and also some smaller attacks like Bit-flipping attack. While this is True, those attacks is applicable only on a raw network protocols, where Attacker has ability to forge ciphertext and send it to server to decrypt. Any of this attacks doesn’t expose Key or raw information that was encrypted. Moreover, in TGBOX, we use CBC to encrypt files, and we use Telegram (connections to Telegram are secure) just as file storage (like local pendrive). In such regard, CBC has no known weaknesses.
We also don’t need parallel decryption or ability to partially re-encrypt some bytes in ciphertext, as Telegram don’t offer any way to implement this mechanic.
Yes. AES-GCM (or any AE mode) would be better.
I started developing and prototyping the TGBOX a years ago. To be honest, I did not expected it to be pretty big project where CBC is not enough. While there is nothing wrong security-wise here in CBC, on code-wise side we could omit implementing HMAC as a separate thing. Changing mode of encryption will require to break the whole codebase to version 2.0, which is not worth it nor required.
Why Scrypt? Scrypt is an amazing PBKDF that is intense on RAM. We use it only to make a first Key that is then derived into many other. By default, User will need to give us 1 gigabyte of RAM for a couple of seconds to unlock his Box, but Attacker will need to give 1 GB for each brute force attempt.
Why SHA256? SHA256 is enough for our purposes. While we use SHA256 to derive most keys, we do it in a way where Length extension attack is not applicable.
Why ECDH-SECP256k1? I’m in love with Bitcoin, so SECP256k1 is our way to go. It’s also not NIST based, which is definitely cool. Also, in Protocol we always use different Private key on Sharing.
Why HMAC-SHA256? Started from version 1.5, the TGBOX Protocol will compute and attach HMAC (E&M) to encrypted files. While Bit-flipping attack can be made only by the Telegram Messenger owners OR by the users which have enough privileges in your Telegram RemoteBox Channel, I decided to add this feature as additional security improvement.
Abstract Box#
The Box is an object that have BoxSalt — 32 (usually random) bytes. With this Salt and user Passphrase we make main encryption key (see Encryption keys hierarchy).
The Box splits into two types, — the Remote (is a Telegram Channel) and Local (is a SQLite database). They have a two states, — the Encrypted (when Passphrase is not presented) and Decrypted.
The RemoteBox store encrypted Files and their Metadata. LocalBox store Metadata and Directories (see details in LocalBox).
The LocalBox can be fully restored from the RemoteBox if you have a decryption key (but this can take a little of time if you uploaded a big amount of files);
The Box can be shared with multiple users.
Abstract Box file#
An abstract Box file is an object that have FileSalt — 32 random bytes. With this Salt and user Passphrase ->
BaseKey->MainKeywe used to make a file encryption key. Started from the version 1.3 we make a file encryption key with theDirectoryKeyand FileSalt. See details in Encryption keys hierarchy;The Box file has Metadata (see Box file & its Metadata);
The Box file splits into two types, — the Remote (stored in a RemoteBox) and Local (metadata of the Remote file stored in a LocalBox). They have a two states, — the Encrypted (when
FileKeyis not presented) and Decrypted;The Box file can be shared with multiple users without giving key of the whole Box; the Requester will only have an access to requested file, and nothing more.
Encryption keys hierarchy#
The Phrase →#
Phrase is a User’s password or generated by Protocol API six random mnemonic words. There is a special class in the TGBOX that can make a phrase: tgbox.keys.Phrase. The Phrase is used to only create a BaseKey.
The BaseKey →#
BaseKey is a master Key that is used to derive all other sub-keys. By default, we make this Key with a tgbox.keys.make_basekey() function, which utilize the Scrypt KDF under the hood and then hash result with SHA256. The Scrypt is configured to require a 1GB of RAM to make a key, and uses non unique salt: tgbox.defaults.Scrypt. Experienced users may want to change it to make a brute-force attack impossible, but should not lost it (we do not store it in any way). Random Phrase or secure password should be just enough to protect your Box. You can wrap any other key in the BaseKey class if you want a different implementation.
We also use BaseKey to encrypt Telegram session (give an access to the Account) in the LocalBox.
The MainKey →#
Note
You mostly will not need to use this and all next Keys directly, because it’s a Protocol business.
MainKey is a Key that is used to derive a directory keys and to encrypt some of the LocalBox data. When we start a “Box making” routine by firstly calling a make_remotebox() function (and then make_localbox()), we receive a 32 random bytes, – the BoxSalt. By concatenating and then hashing by SHA256 the MainKey with BoxSalt (tgbox.keys.make_mainkey()) we make a MainKey.
We also use MainKey to encrypt some of the data stored in RemoteBox file Metadata.
The DirectoryKey →#
DirectoryKey is a Key that is used to derive a file keys. You may want to read the “How does we store file paths” in LocalBox firstly to understand it more clearly. In short, every File in the TGBOX (just as in any OS) has a file path. Every unique (case-sensitive) file path has it’s own DirectoryKey, and an every Part of the file path has it’s own ID, that is linked with the parent Part ID. To make a DirectoryKey, we need to have a Head Part ID (ID of last path part) and MainKey. Firstly, we hash a MainKey, then concate hashed MainKey with the Head Part ID, then hash it again. The final result is a DirectoryKey. See make_dirkey() source code.
In fact, the DirectoryKey is more a deterministic bytes than a Key. It doesn’t encrypt anything, but used only to make a file keys.
The FileKey →#
FileKey is a Key that is used to encrypt file and its Metadata. On prepare_file() we receive a 32 random bytes, – the FileSalt. Just identical to make_mainkey(), we make a FileKey with make_filekey(). Started from the version 1.3, to derive a file keys we use a DirectoryKey. For files that was uploaded prior to the v1.3, we use a MainKey.
The HMACKey#
HMACKey is a Key that is used from v1.5 to compute a HMAC of a file (plaintext) on upload. We make a HMACKey with make_hmackey(), which under the hood utilize the hmac.HMAC on SHA256 with a FileKey and FileSalt as message to derive a HMACKey.
Box file & its Metadata#
On “uploading some file to the Box” routine, the target firstly goes through the prepare_file() function. In it, we verify that file is
valid and if it is, we construct the Box file Metadata, which consist of the next fields:
file_salt (bytes: required, public) – FileSalt is used for FileKey creation
box_salt (bytes: required, public) – BoxSalt is used for MainKey creation
file_fingerprint (bytes: v1.1+, public) – A SHA256 of the File’s path (with name) plus MainKey
efile_path (bytes: v1.3+, public) – Encrypted (by MainKey) File’s path
minor_version (int: v1.3+, public) – The minor version of the TGBOX protocol
_BFP (bytes: v1.5+, required, secret) – 5 random bytes for IV Bit-flipping protection
file_name (bytes: required, secret) – File’s name
file_size (int: required, secret) – Pure file’s size, no metadata included
duration (float: optional, FFMPEG required, secret) – File’s duration (if video/audio)
cattrs (bytes: optional, secret) – File’s custom attributes specified by User
has_hmac_sha256 (bytes: v1.5+, required, secret) – Signal that file has HMAC checksum
preview (bytes: optional, FFMPEG required, secret) – File’s preview (if file is media)
mime (bytes: required, secret) – File’s mime type
- Unpacked Metadata also have some fixed bytes at the beginning, which consist of the:
prefix – Bytes (6) to identify the TGBOX encrypted file
verbyte – Protocol global version as one byte
metadata_size – Bytesize (3) of the Metadata to unpack
Packing Algorithm#
To pack a Key-Value container we use the simple algorithm, that in Protocol is called a PackedAttributes. The packed result here is combination of

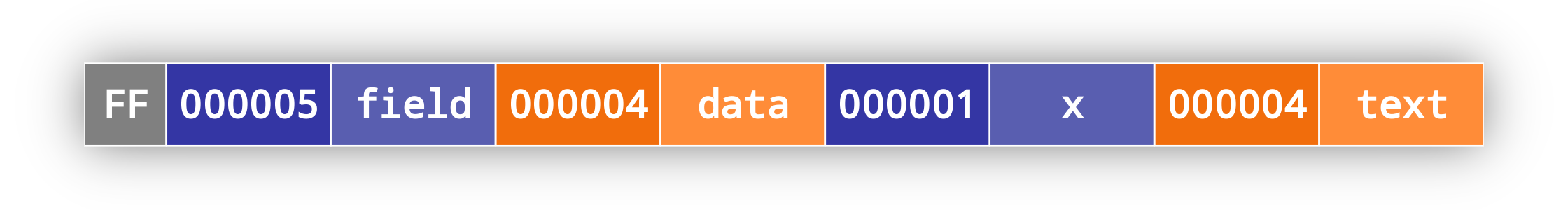

Key length plus Key plus Value length plus Value (all values should be bytes) and so on. We store the Key/Value length in three bytes, so the maximum bytelength for each Key or Value is 16MiB-1.
In the upper image example, FF (is hexed [int 255], as well as Key length & Value length) is a Magic number that identify a PackedAttributes bytestring. The 000005 is a Key length, the next is a Key, which is “field”. So, we slice the first three bytes after Magic number, get a Key length, then we slice a Key length, get a Key. After Key there should be the next three bytes that represent a Value length. We make the same operation as with Key and receive a Value, which is “data”. Repeat this until packed string is not empty.
from tgbox.tools import PackedAttributes
pattrs = PackedAttributes.pack(field=b'data', x=b'test')
# b'\xff\x00\x00\x05field\x00\x00\x04data\x00\x00\x01x\x00\x00\x04test'
print(PackedAttributes.unpack(pattrs))
# {'field': b'data', 'x': b'test'}
Changed in version v1.5: (1) Now positions of Key/Value in PackedAttributes output bytestring is always randomized (random_seed kwarg, default is urandom(32)). (2) The keys, specified in protected_keys tuple kwarg will never be at the start or at the end of packed string (optional).
Bit-flipping Protection#
Started from the version 1.5 we implement some basic protection against the attacks that involve file modification. While it can be done only by Telegram server maintainers & peoples who have enough privileges to edit your files in RemoteBox, I believe that it would be nice addition to security stack of the TGBOX protocol.
Note
Prior to v1.5 we didn’t have any protection against Bit-flipping because TGBOX isn’t a network protocol, it’s a something like file-storage provider, where it is not necessary. However, it’s nice-to-have thing, so here we go!
Secret Metadata protection#
Important
Why bother? Started from version 1.5, Secret Metadata will store the new has_hmac_sha256 key, which would signal Protocol that we must check HMAC of this file on download(). Attacker potentially can Bit-flip some bytes in Secret Metadata to disable this check.
Below is additions that should prevent such scenario.
Secret Metadata is a part of Metadata, fields of which is packed with PackedAttributes and encrypted with FileKey. We can’t just add HMAC-SHA256 to it, as it will break the backward-compatibility. Instead, we will use different approach
In short, changing any bit in block of encrypted data will result in garbaging the whole block after decryption (see Bit-flipping attack). As you can see in Packing Algorithm, packed string contains information bytes(3) that help us separate the Key from Value. Garbaging any of this bytes will result in incorrect unpacking & error;
To prevent attacker from understanding the structure of packed bytestring and higher up chances of garbaging Secret Metadata in controlled way, Key/Value order of dict is additionally randomized on packing process, as stated in Packing Algorithm;
To protect first block of encrypted Secret Metadata from Bit-flipping with IV (flipping IV would not result in garbage after decryption), first Key of packed Secret Metadata will be always
_BFPwith five pseudo-random bytes. Total of\xff(magic number, 1),\x00\x00\x04(key size, 3),_BFP(key, 4),\x00\x00\x05(value size, 3),\x00\x00\x00\x00\x00(i.e some 5 pseudo-random bytes, 5) will form 16 bytes, or whole first CBC block. Changing this block will make zero sense or will lead to unpacking error;We will add
has_hmac_sha256toprotected_keystuple kwarg, which will ensure that this key will never be after_BFPor never be last Key/Value in Secret Metadata. All Keys/Values in this part of Metadata are required, meaning that even one lost Key/Value (excepthas_hmac_sha256, which we protect here) will result in invalid unpacking;Attacker will never know result of Bit-flipping before You download file and tell them.
All this things (with more little checks in the code) should ensure that has_hmac_sha256 will not be changed.
Encrypted File protection#
Started from the version 1.5 we will protect original file with HMAC-SHA256 on upload process. On download routine, we will verify this checksum if has_hmac_sha256 present in Secret Metadata or if minor_version >= 5. We compute HMAC-SHA256 over plaintext (E&M) and append it to the end of encrypted file.
Note
Last 32 bytes of encrypted v1.5+ file is always HMAC.
Why E&M while we can use EtM? While EtM makes sense in networking protocols, here in TGBOX we operate over big chunks of bytes (up to 4GB). It will be strange if firstly we would download whole encrypted file to RAM (or disk), then check HMAC, then decrypt & save. Either we will compute HMAC of encrypted bytedata chunk-by-chunk on decryption (which doesn’t make sense, we’re already decrypting), or this will be bizarre overhead. Instead, we make HMAC over plaintext. First of all, it will guarantee file authenticity (any change in encrypted bytes will affect decrypted). Secondly, this approach will allow us to verify a partially downloaded file. For example, if our download process was interrupted for some reason, we have ability to continue fetching bytes from specified offset. With EtM we would need to Update HMAC with all previously downloaded encrypted bytes to restore HMAC state. But with E&M we can easily calculate over already downloaded decrypted bytes.
Note
Every unique Box file has unique HMACKey, thus no correlations about file contents can be made.
Metadata in depth#
- On this schema:
Only Metadata keys shown;
The efile_path field is encrypted with MainKey. It is now a part of public Metadata, so we can decrypt it, make a DirectoryKey and then FileKey;
The secret_metadata field is encrypted with FileKey.
Note
Metadata is always placed at the start of the Box file.
Describing in Code#
This code example will decrypt and parse example file that was uploaded in my public Box with disclosed MainKey. If you want to test a file from your Box, then you will need to make a MainKey.
How to make a MainKey from the Phrase
import tgbox, base64
# Copy BoxSalt from your Telegram Box Channel description
box_salt = '0000000000000000000000000000000000000000000='
box_salt = tgbox.crypto.BoxSalt(base64.urlsafe_b64decode(box_salt))
phrase = tgbox.keys.Phrase('very_secret_password')
basekey = tgbox.keys.make_basekey(phrase)
# You can use this MainKey & one of the File
# from your Box with the example code below
MAINKEY = tgbox.keys.make_mainkey(basekey, box_salt)
Warning
Never disclose Phrase or BaseKey! Share MainKey only via ShareKey and only if you want to share a Box with someone!
# = Decrypt File Metadata ============================================ #
import pathlib, tgbox
# The MainKey of the example Box is already disclosed, see t.me/nontgbox_non
MAINKEY = tgbox.keys.Key.decode('MbxTyN4T2hzq4sb90YSfWB4uFtL03aIJjiITNUyTqdoU=')
# You need to download the encrypted example Box file: t.me/nontgbox_non/90
BOXFILE = open('awtgMbMtFpEvxXdwrRMruZeJEJEbwk28QyeYr6oaEWM=','rb').read()
# There is PREFIX, VERBYTE and METADATA_SIZE which is always
# fixed in the first 10 bytes of the encrypted by Protocol file
FIXED_METADATA = BOXFILE[:10] # b'\x00TGBOX\x01\x00\x01\x9d'
PREFIX = FIXED_METADATA[:6] # b'\x00TGBOX' (is signature)
VERBYTE = FIXED_METADATA[6:7] # b'\x01' (major Protocol version)
METADATA_SIZE = FIXED_METADATA[7:] # b'\x00\x01\x9d' (size of the Metadata)
# Convert the bytes METADATA_SIZE to the integer type
METADATA_SIZE = tgbox.tools.bytes_to_int(METADATA_SIZE) # 413
# Actual Metadata goes after Fixed, so slice from 10 to METADATA_SIZE+10 (Fixed Metadata bytesize)
METADATA = BOXFILE[10:METADATA_SIZE+10] # b'\xff\x00\x00\x0fsecret_metadata\x00\x00...>
UNPACKED_METADATA = tgbox.tools.PackedAttributes.unpack(METADATA) # {'secret_metadata': b'\x08\xff\xfa<\x04...>
# To decrypt the Secret Metadata we need to make a DirectoryKey, and
# then the FileKey, so firstly we will decrypt the efile_path and
# make a DirectoryKey from the last Path Part ID
file_path = tgbox.crypto.AESwState(MAINKEY).decrypt(UNPACKED_METADATA['efile_path'])
file_path = pathlib.Path(file_path.decode()) # '/home/tgbox/v1.5', ppart_id_generator require Path object
for path_part in tgbox.tools.ppart_id_generator(file_path, MAINKEY):
part_id = path_part[2] # ppart_id_generator yields tuple
# Started from v1.3 we make FileKeys from DirectoryKey, not MainKey
dirkey = tgbox.keys.make_dirkey(MAINKEY, part_id)
# We make a FileKey from DirectoryKey and FileSalt (always in public Metadata)
filekey = tgbox.keys.make_filekey(dirkey, UNPACKED_METADATA['file_salt'])
secret_metadata = tgbox.crypto.AESwState(filekey).decrypt(UNPACKED_METADATA['secret_metadata']) # b'\xff\x00\x00\x04_BFP...>
secret_metadata = tgbox.tools.PackedAttributes.unpack(secret_metadata) # {'_BFP': b'i\x95\xe0\xc1\x9b'...>
print(secret_metadata) # {'_BFP': b'i\x95\xe0\xc1\x9b', 'file_name': b'doc...>
Tip
The next code blocks can be inserted in the end of the code above
Prove that Metadata encryption is properly implemented
from subprocess import run as subprocess_run
# First 16 bytes of any encrypted by Protocol data is IV of AES CBC (256bit)
secret_metadata_iv = UNPACKED_METADATA['secret_metadata'][:16]
# Write the encrypted Secret Metadata (without IV!) to file
open('awtgMbMtF','wb').write(UNPACKED_METADATA['secret_metadata'][16:])
# You can < print(' '.join(subprocess_command)) > to get a CMD command
subprocess_command = ['openssl', 'aes-256-cbc', '-d', '-in', 'awtgMbMtF',
'-K', filekey.hex(), '-iv', secret_metadata_iv.hex()]
sp_result = subprocess_run(subprocess_command, capture_output=True)
print(sp_result.stdout) # b'\xff\x00\x00\x04_BFP...>
# Compare the Unpacked Secret Metadata that was decrypted within Protocol code
# with the Unpacked Secret Metadata that was decrypted within OpenSSL 1.1.1n
print(tgbox.tools.PackedAttributes.unpack(sp_result.stdout) == secret_metadata) # True
# = Decrypt actual File ============================================ #
from hmac import HMAC, compare_digest # v1.5+ files require HMAC
# Actual encrypted File (original file that was uploaded by user)
# position is FIXED_METADATA size (10, -- PREFIX + VERBYTE +
# METADATA_SIZE) plus METADATA_SIZE (integer)
encrypted_file_pos = 10 + METADATA_SIZE # 423
# encrypted_file includes IV as first 16 bytes
encrypted_file = BOXFILE[encrypted_file_pos:]
# Last 32 bytes of encrypted file is HMAC-SHA256 if
# 'secret_metadata' has 'has_hmac_sha256' Key (v1.5+)
if secret_metadata.get('has_hmac_sha256', None):
hmac_sha256 = encrypted_file[-32:]
encrypted_file = encrypted_file[:-32]
# We need to verify HMAC if File has it,
# we do so with Plaintext and HMACKey
hmackey = tgbox.keys.make_hmackey(filekey=filekey,
file_salt = tgbox.crypto.FileSalt(file_salt))
else:
hmac_sha256 = None
# Just similar to Secret Metadata, we decrypt File with FileKey
decrypted_file = tgbox.crypto.AESwState(filekey).decrypt(encrypted_file)
if hmac_sha256:
hmac_state = HMAC(hmackey.key, decrypted_file, digestmod='sha256')
print(compare_digest(hmac_sha256, hmac_state.digest())) # True
# I made & uploaded an example text File, so we can print it
print(decrypted_file) # b'This file will be deconstructed in v1.5 docs! :)\n...>
Prove that File encryption is properly implemented
# 'encrypted_file' here is already without HMAC as we
# removed it in the "Decrypt actual File" chapter. Do
# not forget to remove it from bytes before decrypting
from subprocess import run as subprocess_run
# First 16 bytes of any encrypted by Protocol data is IV of AES CBC (256bit)
encrypted_file_iv = encrypted_file[:16]
# Write the encrypted user File (without IV!) to file
open('awtgMbMtF','wb').write(encrypted_file[16:])
# You can < print(' '.join(subprocess_command)) > to get a CMD command
subprocess_command = ['openssl', 'aes-256-cbc', '-d', '-in', 'awtgMbMtF',
'-K', filekey.hex(), '-iv', encrypted_file_iv.hex()]
sp_result = subprocess_run(subprocess_command, capture_output=True)
print(sp_result.stdout) # b'This file will be deconstructed in v1.5 docs! :)\n...>
File Storage#
When user “adds some file to the Box”, we:
Check it for validity, make Metadata and store it in
PreparedFileobject;Take
PreparedFile, concatenate Metadata with encrypted File and upload it to the RemoteBox;Store Metadata plus File IV alongside with other data in the SQLite Database (or the LocalBox).
We store user’s Box file (Metadata plus Encrypted user File) in the RemoteBox. Locally, in the LocalBox, we store only Metadata (and some other data that can help us to operate faster on local storage). You may refer to LocalBox as “RemoteBox cache”. It’s always better to use Local for gathering info about Files.
Updating Files#
Although the Telegram messenger doesn’t allow us to update a parts of already uploaded Files, there is some methods in the Protocol that can help you in some scenarios.
Updating Metadata#
You can update some Metadata attributes of the Box File after it was uploaded. For example, you can change a File name of File path (last will change Directory too, like “move to folder” operation) with update_metadata() on LocalBox File with corresponding DecryptedRemoteBoxFile as drbf argument. Please note that we can not partially update already uploaded to Telegram File, so your updated Metadata attributes will be stored in encrypted and encoded form in the File caption, which have it’s own limits (~2KB/~4KB Premium).
Re-uploading File#
You can fully re-upload (and so edit) already existen Box File. This can be useful for small files that constantly change its contents. To do so, you should prepare a new file with prepare_file(), get a DecryptedRemoteBoxFile that you want to change and call update_file() on DecryptedRemoteBox. No interaction with LocalBox is needed, as tgbox.api.utils.PreparedFile contains DecryptedLocalBox as object and will be updated automatically.
Versioning#
The TGBOX will try to follow the well known Semantic Versioning. Development cycle:
We will increment Minor Version and push all updates to the default
indevbranchWhile developing, we will increment the alpha/beta tags of Version and make pre-release
When all updates will be committed & tested, we will make a branch of Version
In future, we will push patches to the Version branch and make release of it.
You can get a version from
tgbox.versionmodule, and Minor Version as integer fromtgbox.defaults.MINOR_VERSIONconstant.The
VERBYTEdefine compatibility, it is the major version. While it’s not incremented, all new updates MUST support previous file formats, methods, etc. Except Version byte there can be lower versions, likev1.1,v1.1.1, etc. Verbyte=b'\x00'and Verbyte=b'\x01'shouldn’t be compatible, otherwise we can use a lower version (minor/patch), i.ev1.1. Typically we will updateVERBYTEonly on the breaking API changes.
