LocalBox

The LocalBox store metadata of the uploaded to the RemoteBox RemoteBoxFiles, but doesn’t store files in any form by itself. LocalBox may be reffered as RemoteBox cache. We use aiosqlite as database and three tables in it.

Note

DecryptedLocalBox can be fully restored from DecryptedRemoteBox.

Tables

LocalBox have 4 tables: BOX_DATA, FILES, PATH_PARTS and DEFAULTS.

BOX_DATA

BOX_DATA store information about Box, Session, etc.

BOX_CHANNEL_ID	BOX_CR_TIME	BOX_SALT	MAINKEY	SESSION	API_ID	API_HASH	FAST_SYNC_LAST_EVENT_ID
BLOB	BLOB	BLOB	BLOB|NULL	BLOB	BLOB	BLOB	BLOB

• BOX_CHANNEL_ID – Encrypted RemoteBox (Telegram channel) ID

• BOX_CR_TIME – Encrypted LocalBox creation time

• BOX_SALT – BoxSalt for MainKey creation

• MAINKEY – Encrypted by BaseKey MainKey. Used if RemoteBox was cloned

• SESSION – Encrypted by BaseKey Telethon’s StringSession

• API_ID – Encrypted by MainKey your API_ID from the my.telegram.org site

• API_HASH – Encrypted by MainKey your API_HASH from the my.telegram.org site

• FAST_SYNC_LAST_EVENT_ID – Last found on the fast syncing event ID

FILES

FILES store information about uploaded to the RemoteBox files.

ID {PRIMARY_KEY}	UPLOAD_TIME	PPATH_HEAD	FILEKEY	METADATA	UPDATED_METADATA
INT	BLOB	BLOB	BLOB|NULL	BLOB	BLOB|NULL

Note

• ID is a Telegram message ID. Must be unique as any SQLite PrimaryKey

• PPATH_HEAD is a path PartID of the last part (folder). See a “How does we store file paths” chapter after the “Tables”

• FILEKEY will be not NULL only when you import RemoteBoxFile from other’s RemoteBox. In this case it’s encrypted by MainKey of the recipient Box

• We take METADATA from the RemoteBoxFile and place it to the LocalBox without changing anything

• UPDATED_METADATA is a user changes of METADATA, encrypted and packed with the PackedAttributes algorithm

PATH_PARTS

PATH_PARTS store every path part in encrypted form with their IDs.

ENC_PART	PART_ID {PRIMARY_KEY}	PARENT_PART_ID
BLOB	BLOB	BLOB|NULL

How does we store file paths

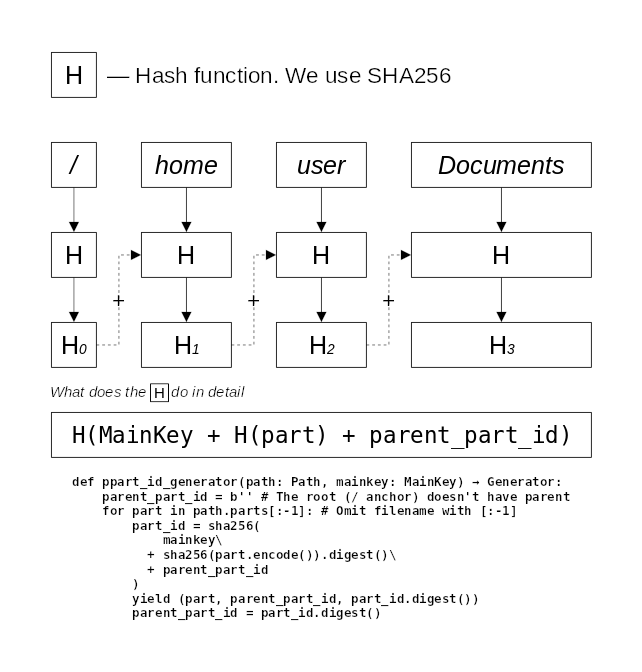

Every file in TGBOX (as well as in any OS) must have a file path. TGBOX should accept any path that pathlib.Path can support: the UNIX-like and Windows-like. So, let’s imagine that we have an abstract file called file.txt. It’s absolute (Unix-like) path will be /home/user/Documents. The RemoteBoxFile will store its path in a file metadata as is. However, in the LocalBox we will store it more efficiently. See a schema below

Our file in LocalBox will store last PartID of the Documents folder: H(3) in a PPATH_HEAD column. More simple, this like saying “file.txt located in the /home/user/Documents” without saying /home/non/Documents but still presenting the same information. LocalBox owner will be able to quick-fetch all the local box files and directories in a Documents folder as well as in any other. Try to iterate over all LocalBox contents with DecryptedLocalBox.contents async generator! Look at the brand new (for v1.0 :)) tgbox.api.DecryptedLocalBoxDirectory class. It have a nice iterdir() method.

Warning

In a previous versions we stored just encrypted file paths and FolderID. With this, navigation over files was a really awfull but this had a little benefit: there was a zero information about the file directory structure (because it wasn’t :)). Now, if attacker will have a full access to your EncryptedLocalBox he can read that our file.txt have ENCRYPTED/ENCRYPTED/ENCRYPTED/ENCRYPTED/ENCRYPTED_FILE (the first ENCRYPTED is /) absolute path and nothing more. He will also know that first path part (H(0)) is probably / or C:\\ (anchors), but can’t guarantee this. Attacker without your decryption key will not know any info about the files or folders, even its names. AES CBC that we’re using in TGBOX is resistant to the Known-plaintext attack, so knowing that there might be / will not give any critical information like decryption key.

DEFAULTS

DEFAULTS store some of the default TGBOX values

METADATA_MAX	FILE_PATH_MAX	DOWNLOAD_PATH	DEF_NO_FOLDER	DEF_UNK_FOLDER
INTEGER	INTEGER	TEXT	TEXT	TEXT

Note

• METADATA_MAX is the bytesize limit of the TGBOX file metadata

• FILE_PATH_MAX is the bytesize limit of the file path

• DOWNLOAD_PATH is the default download path

• DEF_NO_FOLDER is the default folder when file path is not specified on uploading/importing

• DEF_UNK_FOLDER is the default folder to which files will be placed on download if hide_folder is True
