RemoteBox

The RemoteBox is a place where we store encrypted files. It’s a Telegram Channel, that have encoded by url safe Base64 BoxSalt in the description. By default, all created by API channels will have f"TGBOX[{VERBYTE.hex()}]: " prefix in the name.

RemoteBoxFile

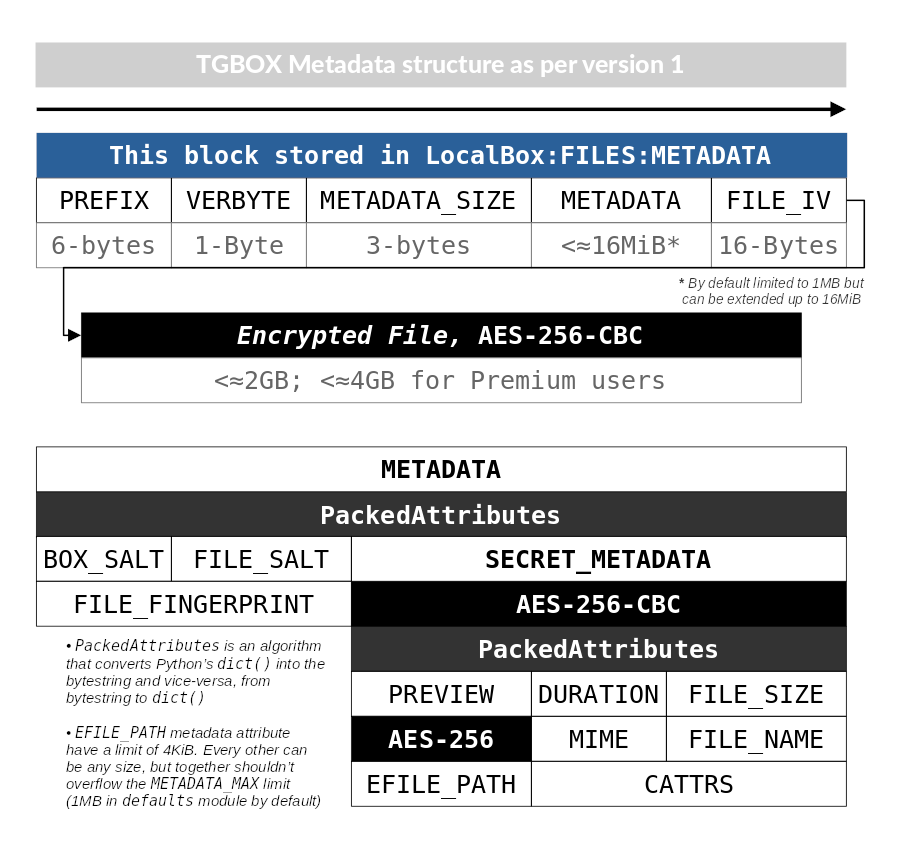

The EncryptedRemoteBoxFile has own metadata. As per version 1 schema looks like follows:

To decrypt file and its attributes, we need to go through some steps:

0. Sum length of PREFIX, VERBYTE and METADA_SIZE (10 by default), get a fixed_bytes_size

1. Download fixed bytes: from=0, to=fixed_bytes_size; get a PREFIX, VERBYTE and METADA_SIZE

2. Convert METADA_SIZE to int and verify that METADATA_SIZE <= defaults.Limits.METADATA_MAX

3. Download the metadata: from=fixed_bytes_size, to=METADA_SIZE, receive a metadata

4. Unpack metadata with the tools.PackedAttributes.unpack(metadata), receive a metadata_dict

5. If BaseKey isn’t presented, take a user’s password/phrase and call keys.make_basekey(phrase)

6. If MainKey isn’t presented, take a user’s basekey and call keys.make_mainkey(basekey, metadata_dict['box_salt'])

7. If FileKey isn’t presented, take a user’s mainkey and call keys.make_filekey(mainkey, metadata_dict['file_salt'])

8. Decrypt metadata_dict['secret_metadata'] with the user’s filekey

9. Unpack secret_metadata with the tools.PackedAttributes.unpack(secret_metadata)

10. If MainKey was presented, decrypt secret_metadata['efile_path'], get a file_path

Note

• Unpacked metadata is a {'box_salt': ..., 'file_salt': ..., 'secret_metadata': ...}

• We need to decrypt secret_metadata with the FileKey and unpack it to access attributes

• We always encrypt efile_path attribute with the MainKey

• Max bytesize of metadata is defined in the defaults.Limits.METADATA_MAX variable

• RemoteBox Telegram channel doesn’t store any sensitive information. You can leave it public if you want but beware, if you’re using weak or predictable password then you can still be brute-forced.

• RemoteBox store all information that store LocalBox.
